Qingdao suyuan Plastic Machinery Co., Ltd.
|
Price: | 10000.0~11000.0 USD |
Payment Terms: | T/T |
Place of Origin: | Shandong, China (Mainland) |
Add to My Favorites | |
HiSupplier Escrow |
1.Electric power | 380v/3P/50Hz | |||
2.Material | PE: PE 80(100) | |||
3.Output Note:Productioncapacity is variety depending on raw material and operation. | Extrudermodel | Material | output(max.) | Remark |
SJ-45×30 | PE grain | 60kg/h | For pipeextrusion | |
SJ-30×30 | PE grain | 10kg/h | For corepipe extrusion | |
SJ-25×25 | PE grain | 6kg/h | For marking line extrusion | |
4.specification | 10-25mm | |||
5.speedof production line | 2-8m/min | |||
6.Extrudercenter high | 1000mm | |||
7.Operation direction | fromright to left | |||
8. grosspower | 50kw(realitypower:approx.30kw) | |||
9.cooling recycle water | ≤30℃≥0.3Mpa ~30T/h | |||
10.compression air | 0.4m3/min,>0.5MPa | |||
11.Moistureof working condition | ≤85% | |||
12.Temperatureof working condition | 0-40℃ |
1. SJ-45/30 single screw extruder | 1set |
2. SJ-30/30 single screw extruder (for marking lineextrusion) | 1set |
3. SJ-25/25 single screw extruder | 1set |
4. Co-extrusion head die with changeable mouth andcore mould | 1set |

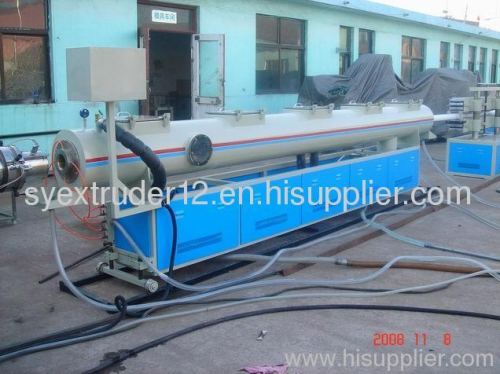

5. Vacuum calibrating water trough | 1set |
6. Spraying cooling water tank | 1set |
Twin-caterpillarhaul off unit | 1set |
7. Cutting machine | 1set |
8.Double-positionwinder | 1set |
PRICE | USD30000.00 |
